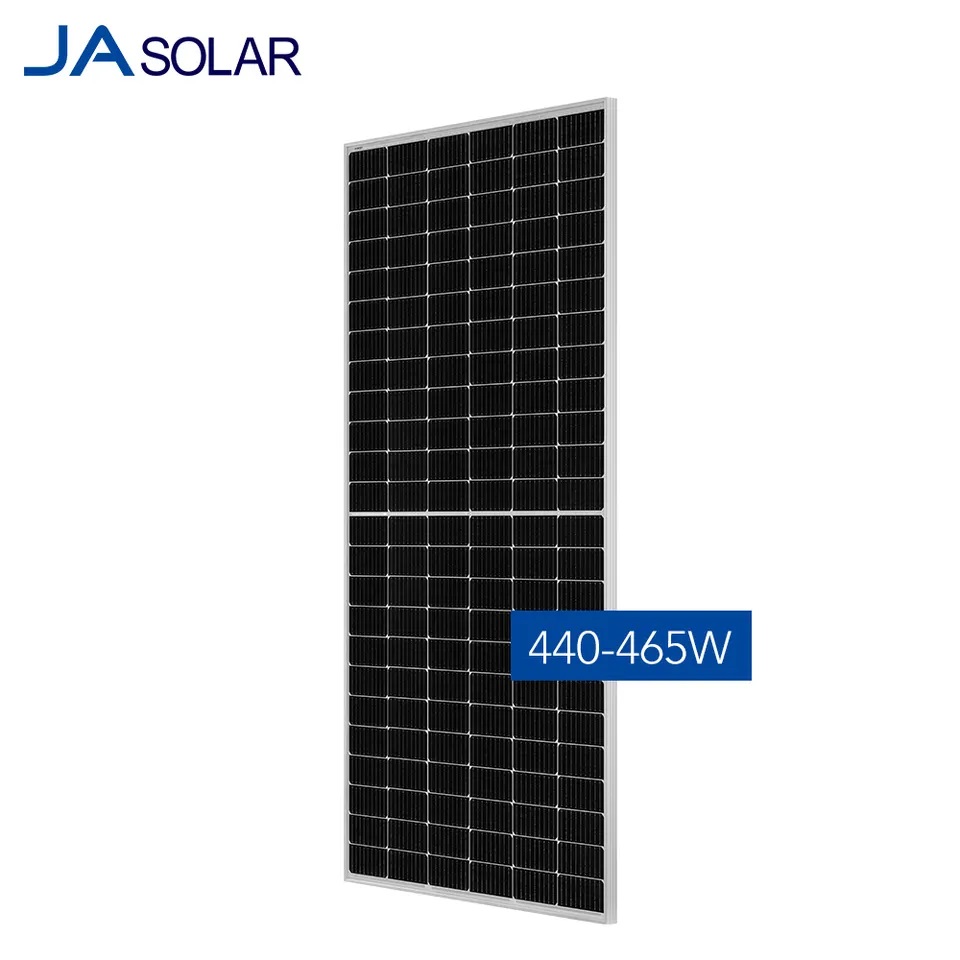

| Model No. |
JAM60S20-460/MR |
| Warranty |
|
| Product Warranty |
12 Years |
| Power Warranty |
25 Years of 84.0% Output Power |
| Electrical Data at STC |
|
| Maximum Power (Pmax) |
460 Wp |
| Voltage at Maximum Power (Vmpp) |
42.13 V |
| Current at Maximum Power (Impp) |
10.92 A |
| Open Circuit Voltage (Voc) |
50.01 V |
| Short Circuit Current (Isc) |
11.45 A |
| Panel Efficiency |
20.6% |
| Power Tolerance (Positive) |
0+5W |
| |
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C |
| Electrical Data at NOCT |
|
| Maximum Power (Pmax) |
348 Wp |
| Voltage at Maximum Power (Vmpp) |
39.68 V |
| Current at Maximum Power (Impp) |
8.76 A |
| Open Circuit Voltage (Voc) |
47.38 V |
| Short Circuit Current (Isc) |
9.33 A |
| Temperature |
45±2 °C |
| |
Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C |
| Thermal Ratings |
|
| Operating Temperature Range |
-40~85 °C |
| Temperature Coefficient of Pmax |
-0.35 %/°C |
| Temperature Coefficient of Voc |
-0.272 %/°C |
| Temperature Coefficient of Isc |
0.044 %/°C |
| Maximum Ratings |
|
| Maximum System Voltage |
1000 V |
| Series Fuse Rating |
20 A |
| Material Data |
|
| Panel Dimension (H/W/D) |
2120x1052x40 mm |
| Weight |
25 kg |
| Cell Type |
PERC |
| Cell Number |
144 (6*24) |
| Junction Box Diodes |
3 |
| Junction Box Protection Class |
IP 68 |
| Cable Crossection |
4 mm2 |
| Cable Length |
Portrait: 300mm(+)/400mm(-) |
